10AWG Sun Cable Solar Photovoltaic Pv Wire 2KV UL4703 Supplier

Solar Wire is a highly flexible cable specially designed for connecting photovoltaicsolar systems. lt has obtained multiple international certifications such asTUV/UL/IEC/CE/RETlE and complies with UL4703, IEC62930, and EN50618/CPRstandards. lt is suitable for many different solar power fields such as large-scale solarpower stations, rooftop solar power stations, and water-surface floating powerstations. This versatile solar cable is designed to meet the different needs of thesolar industry. lt is suitable for various harsh indoor and outdoor environments suchas roofs, deserts, lakes, seasides, and mountains (climates with high temperatures,high humidity, and high salt content). Stable and good connection performanceensures the long-term safe operation of the photovoltaic system, effectivelyreducing the failure rate and later operation costs of the photovoltaic system. Getyour PV installations up and running efficiently and safely. Achieving sustainable andsuccessful pV profitability.

DOWNLOAD

  • Conductor Class 5 (flexible) tinned copper
  • Rated voltage 600-1000VAC,2000VDC
  • Test voltage 6500V,50Hz,10Min
  • Temperature Rating -40°C~+90°C
  • Fire Performance UL1581 VW-1
  • Executive standard UL4703
  • Water performance AD7
  • Minimum bend radius 5D (D:cable diameter)
  • Optional features Meter by meter marking, rodent-proof and termite-proof
  • Certification TUV/UL/RETIE/IEC/CE/RoHS

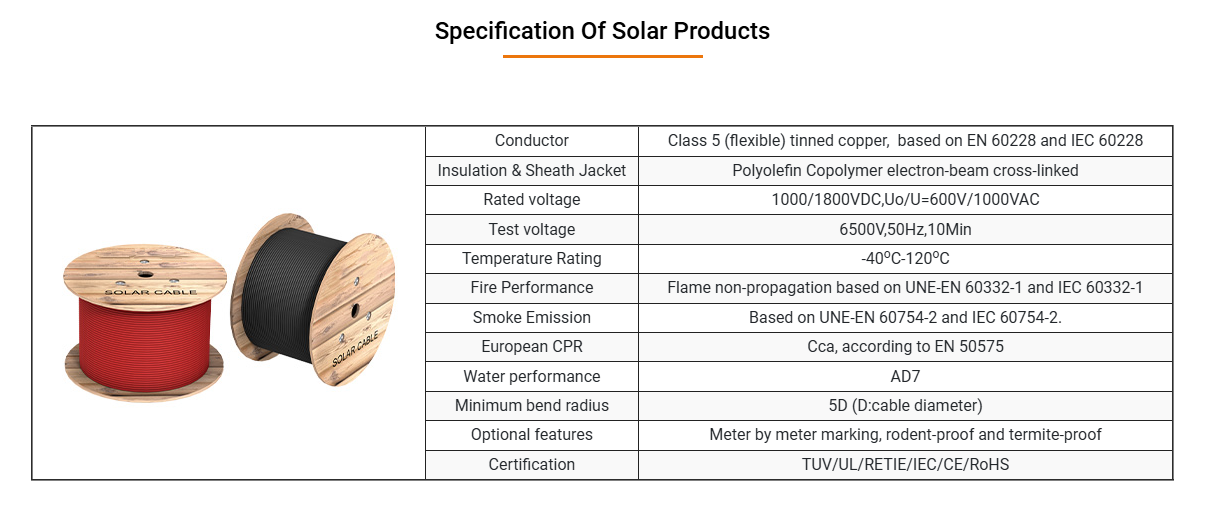

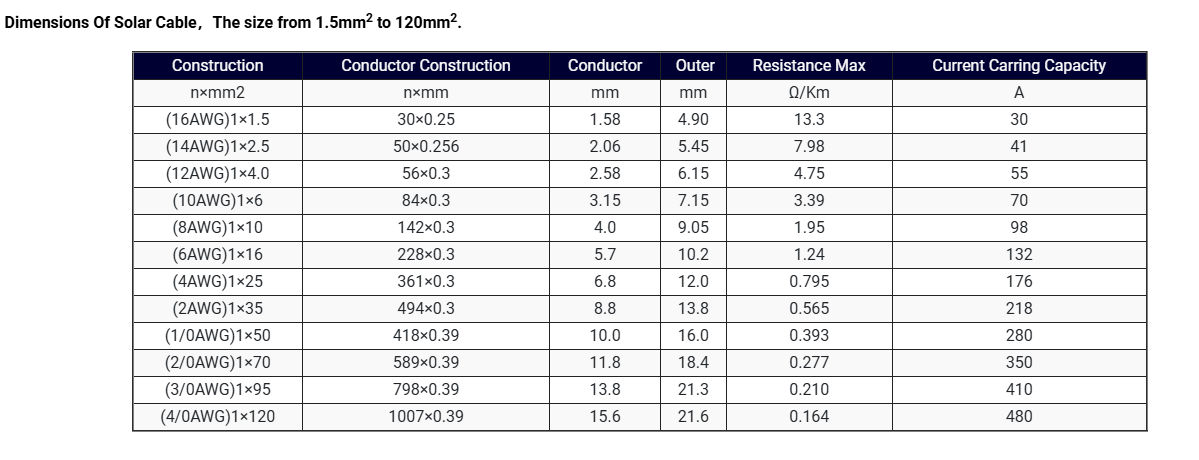

SPECIFICATIONS



Standard Package Info:
