2 to 1 T Branch Connector
Home
Solar Branch Connector
2 to 1 T Branch Connector
OVERVIEW
SPECIFICATIONS
TECHNICAL & SALES SUPPORT

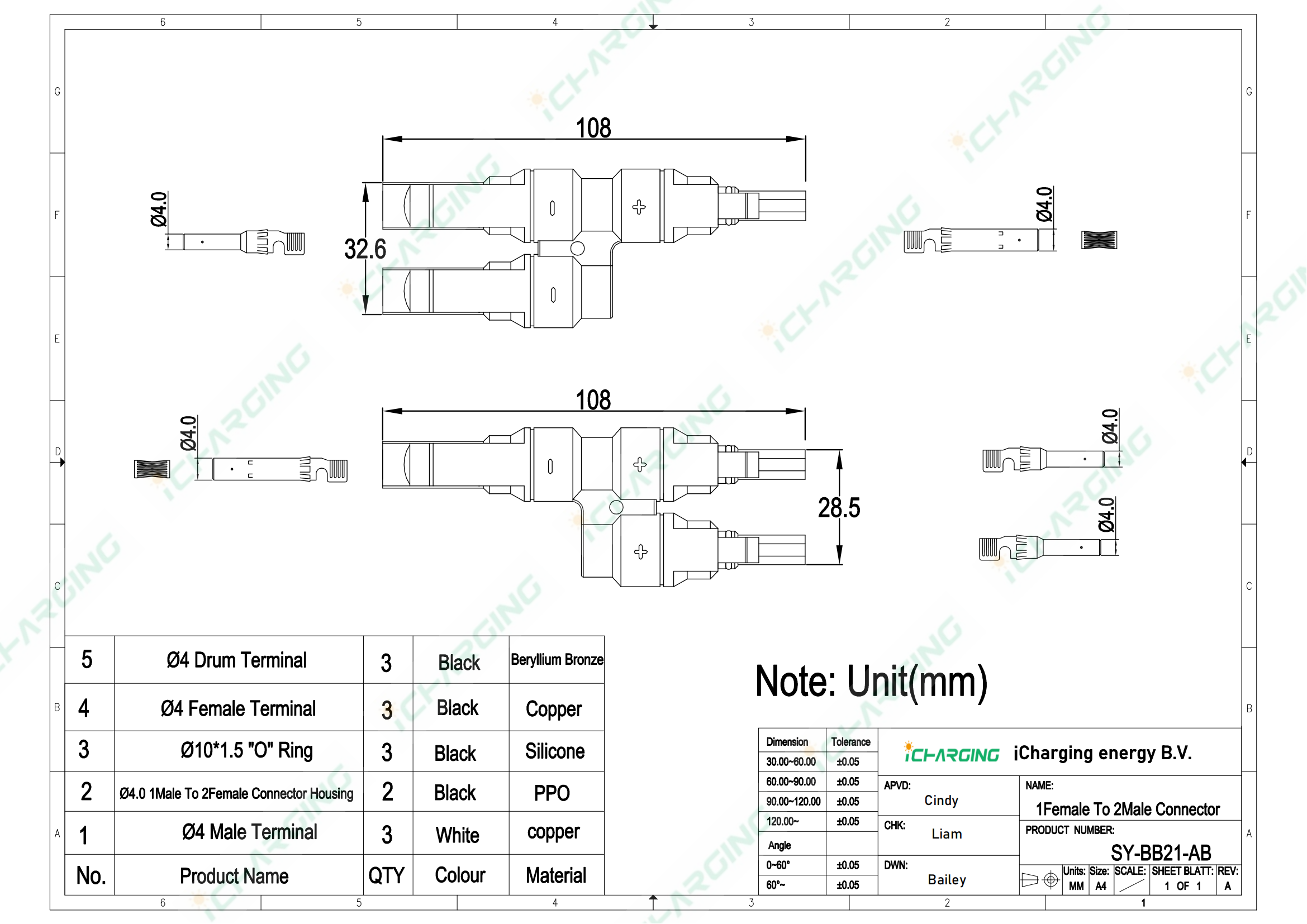

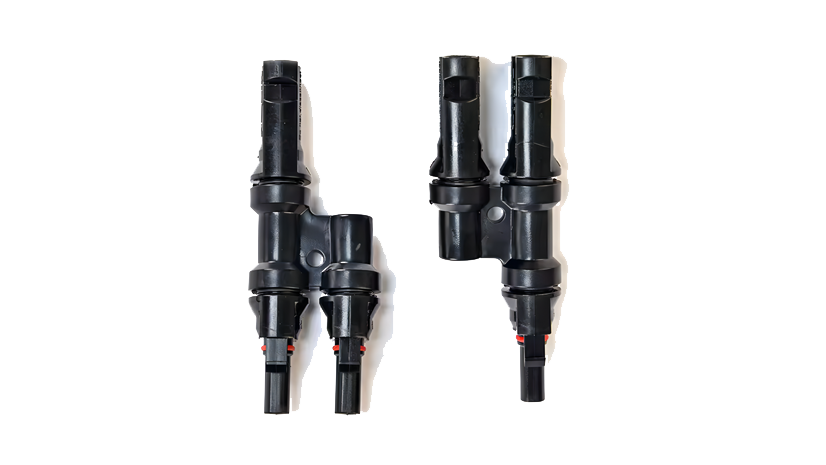

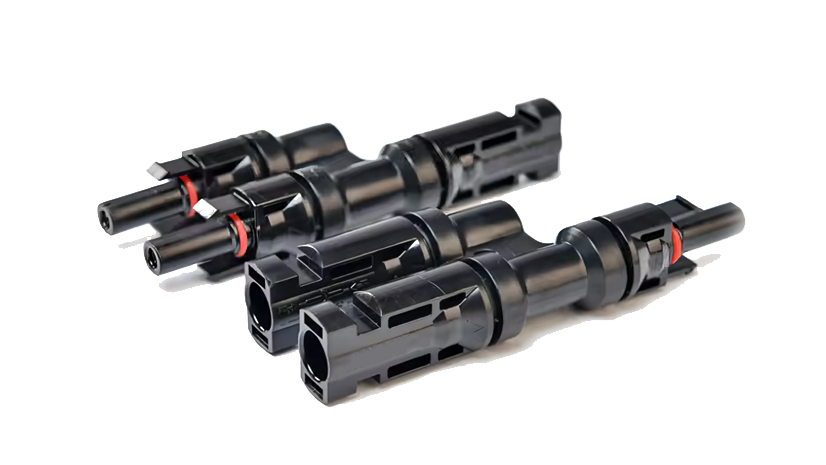

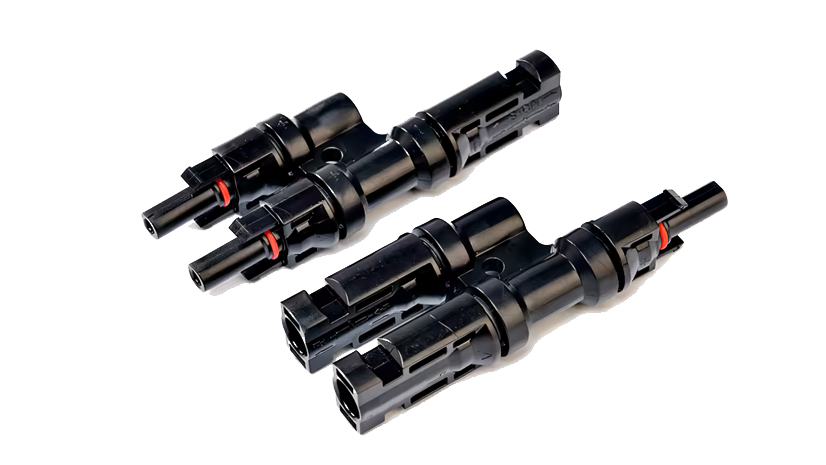

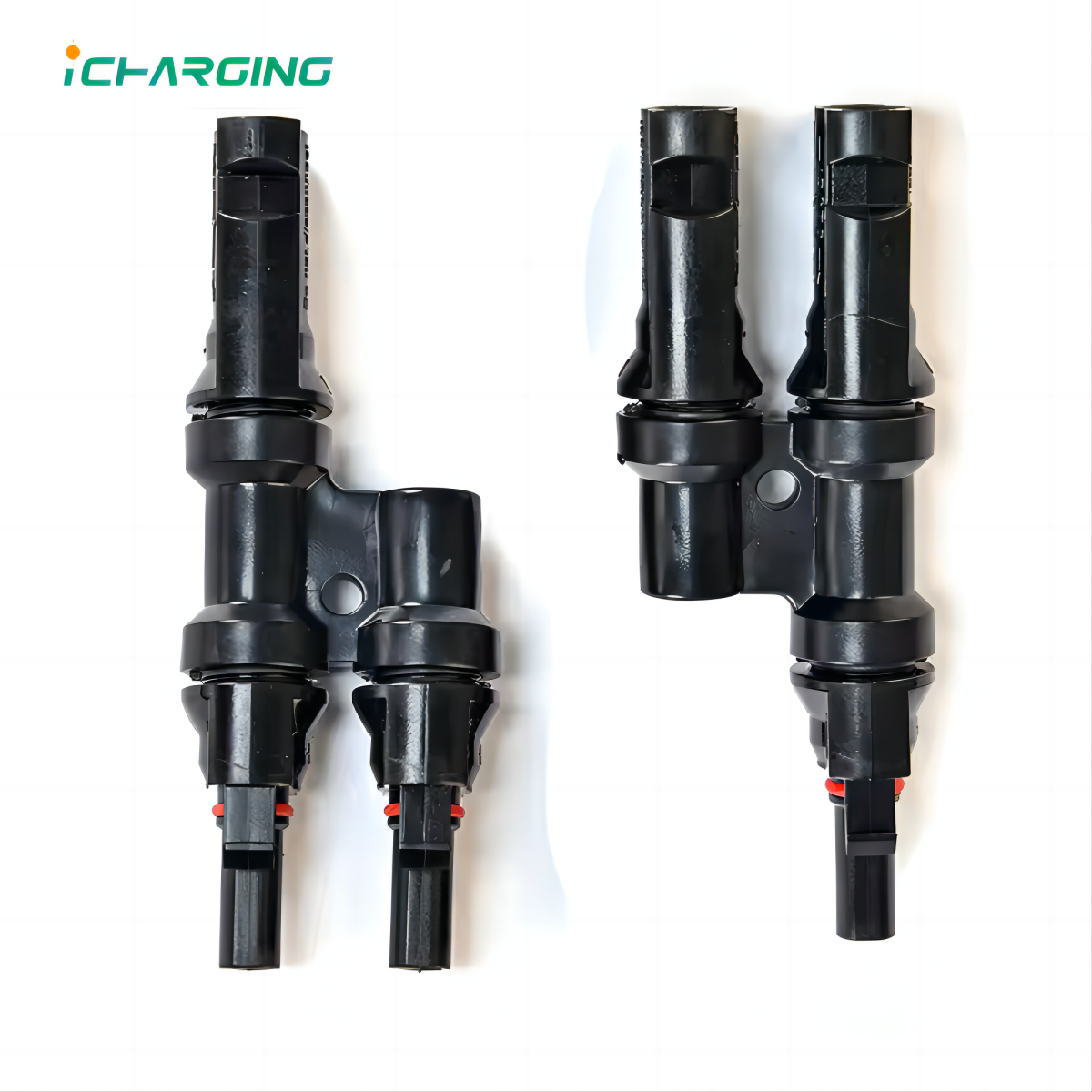

2 to 1 T Branch Connector
DOWNLOAD

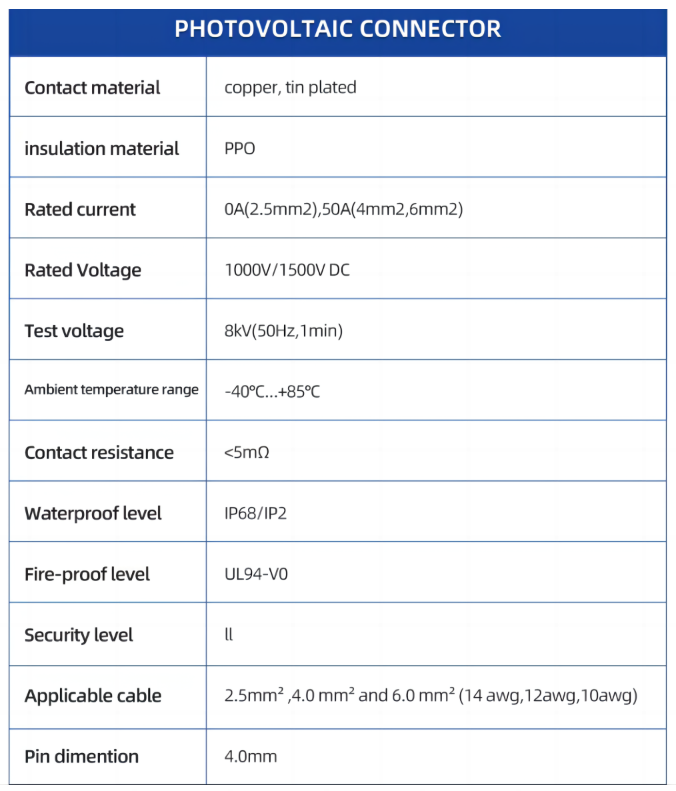

Contact material:
Copper, tin plated
Insulation material:
PPO
Rated current:
0A(2.5mm2),50A(4mm2,6mm2)
Rated voltage:
1000V/1500V DC
Test voltage:
8kV(50Hz,1min)
Ambient temperature range:
-40℃~+85℃
Contact resistance:
<5mΩ
Waterproof level:
IP68/IP2
Fire-proof level:
UL94-V0
Security level:
l
Applicable cable:
2.5mm2,4.0 mm2and 6.0 mm2(14 awg,12awg,10awg)
Pin dimention:
4.0mm
