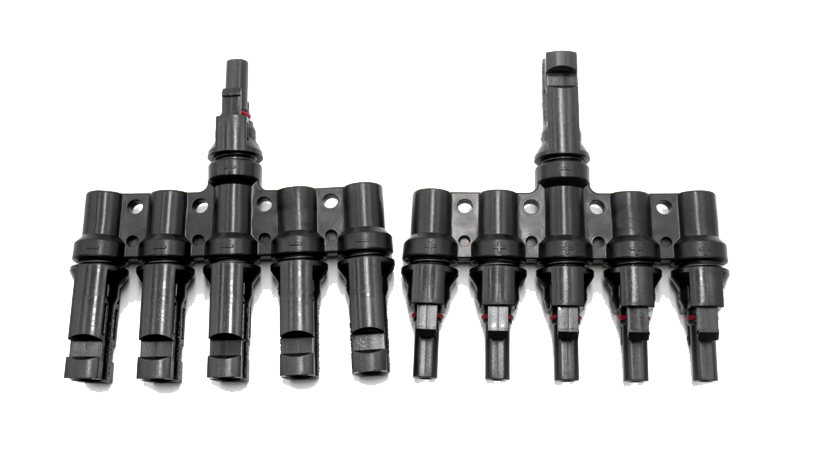

5 to 1 T Branch Connector
Home
Solar Branch Connector
5 to 1 T Branch Connector
OVERVIEW
SPECIFICATIONS
TECHNICAL & SALES SUPPORT
5 to 1 T Branch Connector
DOWNLOAD
Contact material:
Copper, tin plated
Insulation Material:
PPO
Contact resistance:
<5mΩ
Rated Voltage:
1000V DC
Adapter Connector:
PV004/PV005
Ambient Temperature:
-40℃~+85℃
Protection Degree:
IP65
Rated Current:
30A
Flame Class:
UL94-V0
