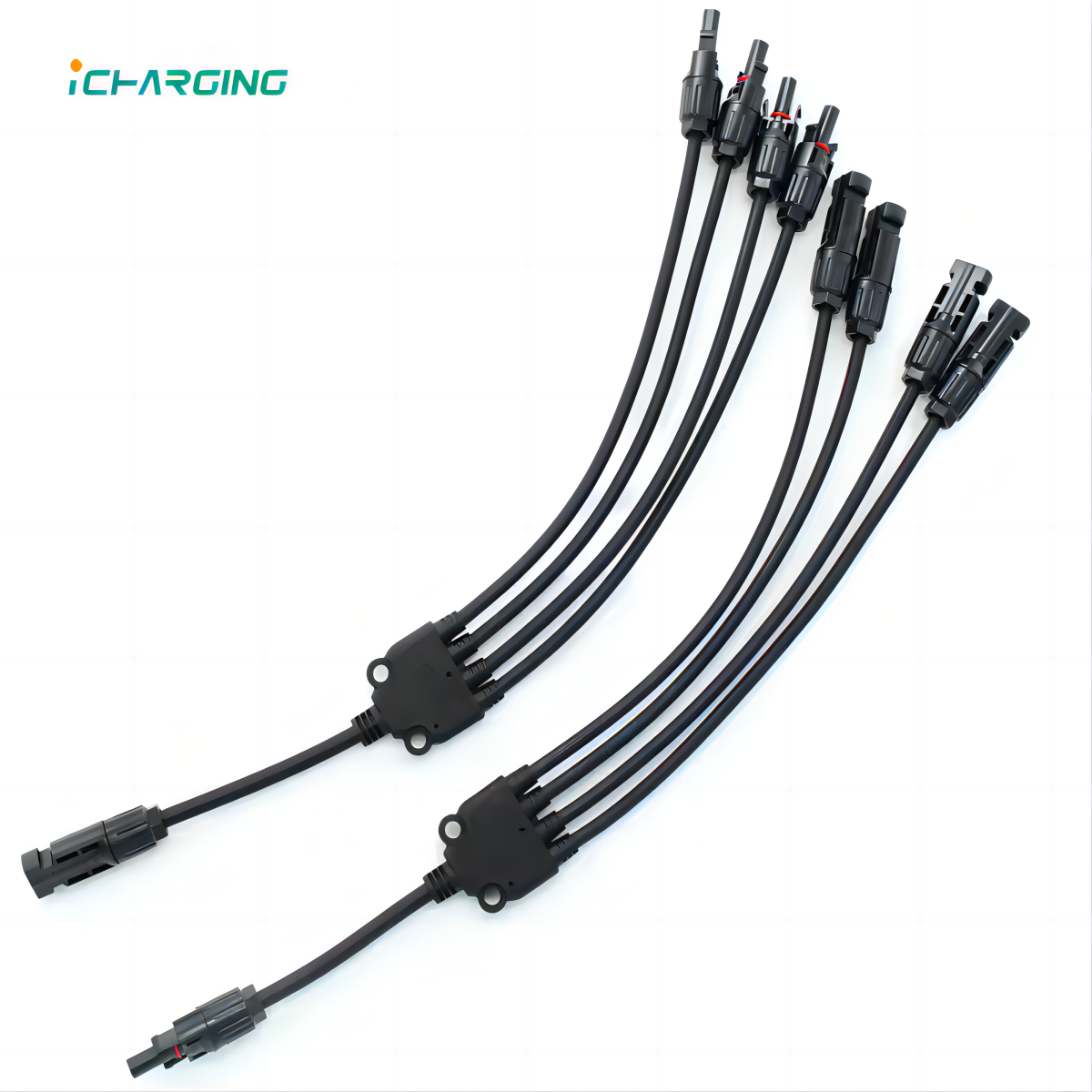

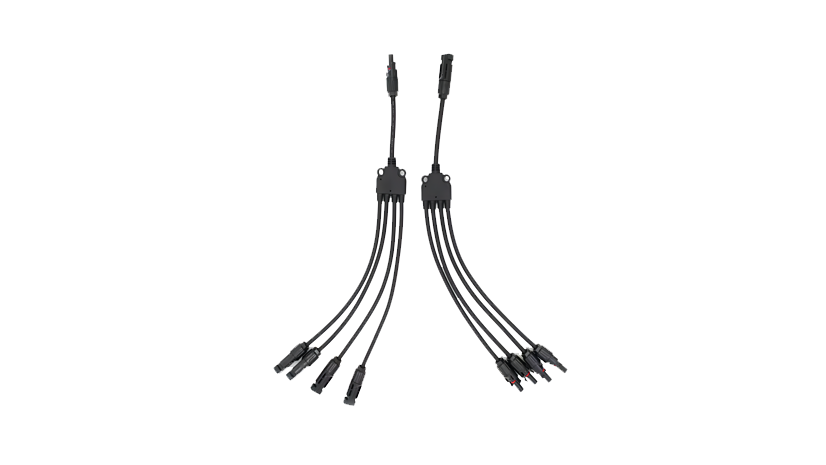

4 to 1 Y Branch Connector
Home
Solar Cable Wiring Harness
4 to 1 Y Branch Connector
OVERVIEW
SPECIFICATIONS
TECHNICAL & SALES SUPPORT
4 to 1 Y Branch Connector
DOWNLOAD
Model Number:
Solar connector
Application:
Solar system
Color:
Black and red
Warranty:
2 Years
Rated current:
30A(1.5-10mm2)
Insert Resistance:
1mmΩ
Insert force:
≤60N
Full out the force:
≤89N
Degree of protection:
IP67
Wiring specifications:
2.5/4/6mm*2
Max operation voltage:
DC 1500V
Shell material:
PPO insulation materia
Temperature range:
-40℃~125℃
